10. GraphQL

10.1
GraphQL Intro

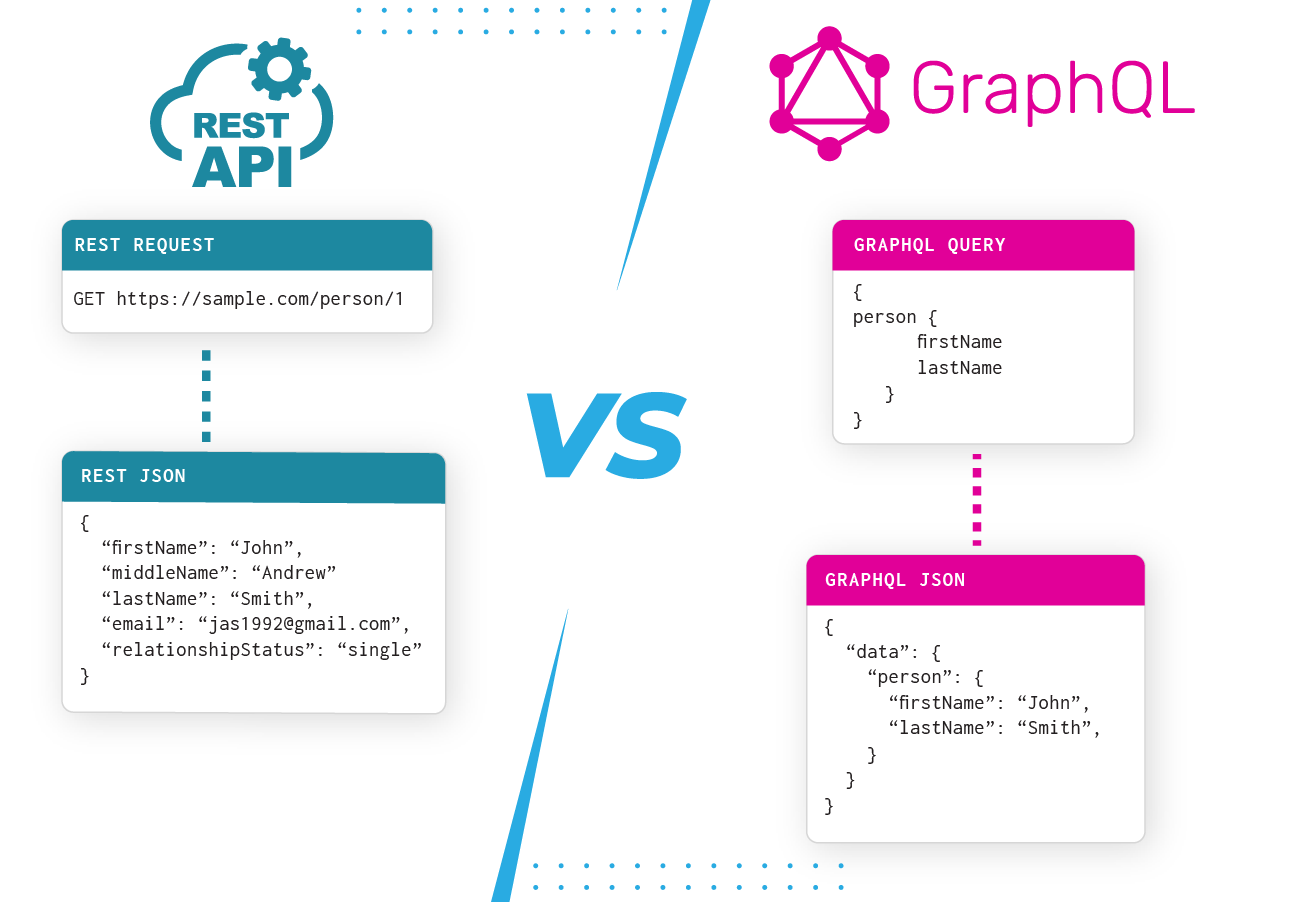

REST API vs. GraphQL

GraphQL

• GraphQL is an open-source data query and manipulation language for APIs and a server-side runtime engine.
• A GraphQL API is on the same level as a REST API, not tied to any specific database systems or programming language
• History
  • Released as open source in 2015 by Facebook
  • Moved to non-profit Linux foundation since 2018
  • Many public APIs do have a GraphQL interface
• Basic mechanism
  • The server exposes a single endpoint, typically over HTTP(S)
  • The client can specify exactly what data it needs in a query containing the shape of the data
  • The server returns a result that mirrors the shape of the query, typically as JSON

Type System

• GraphQL APIs are organized in terms of types and fields
• = the schema definition
• The Query is also part of it

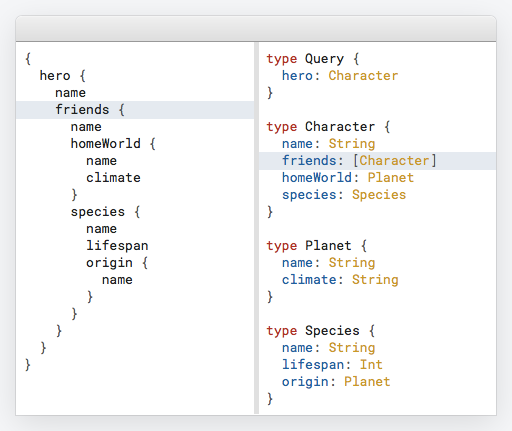

• Example query and type system:

What's in the GraphQL standard?

• Type system
• Queries
• Mutations: queries that modify server-side data
• Validation: use type system to determine whether query is valid
• Resolvers: functions on the server retrieving the data
• Introspection: query the schema itself!
• Best practices
  • On authorization, pagination, caching, …
  • Avoid versioning! Add capabilities in new types and fields
  • Nullability: in case of errors return null, which supports partial results

Are you already a fan of GraphQL?

… or not?

10.2
Let's dive into the standard

Queries: fields

• Example query and result with fields
• The name field of the hero object is a String

{
  hero {
    name
    # Queries can have comments!
    friends {
      name
    }
  }
}

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Queries: arguments

• Like query parameters in REST
• Fields can have arguments too (is of the Enumeration type here)

{
  human(id: "1000") {
    name
    height(unit: FOOT)
  }
}

{
  "data": {
    "human": {
      "name": "Luke Skywalker",
      "height": 5.6430448
    }
  }
}

Queries: aliases

• Aliases allow to query the same field multiple times

{
  empireHero: hero(episode: EMPIRE) {
    name
  }
  jediHero: hero(episode: JEDI) {
    name
  }
}

{
  "data": {
    "empireHero": {
      "name": "Luke Skywalker"
    },
    "jediHero": {
      "name": "R2-D2"
    }
  }
}

Queries: operation name

• query is the operation type
• HeroNameAndFriends is the operation name

query HeroNameAndFriends {
  hero {
    name
    friends {
      name
    }
  }
}

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Queries: variables

• Pass dynamic values in a separate dictionary
• In the client code, don't concatenate user-supplied values
• Episode! would mean the variable is non-null and required

query HeroNameAndFriends($episode: Episode) {
  hero(episode: $episode) {
    name
    friends {
      name
    }
  }
}

# separate dictionary:
{
  "episode": "JEDI"
}

{
  "data": {
    "hero": {
      "name": "R2-D2",
      "friends": [
        {
          "name": "Luke Skywalker"
        },
        {
          "name": "Han Solo"
        },
        {
          "name": "Leia Organa"
        }
      ]
    }
  }
}

Mutations

• Call your query a mutation when it modifies server-side data
• Often, the new state of the object is asked for and returned

mutation CreateReviewForEpisode($ep: Episode!, $review: ReviewInput!) {
  createReview(episode: $ep, review: $review) {
    stars
    commentary
  }
}

# separate dictionary:
{
  "ep": "JEDI",
  "review": {
    "stars": 5,
    "commentary": "This is a great movie!"
  }
}

{
  "data": {
    "createReview": {
      "stars": 5,
      "commentary": "This is a great movie!"
    }
  }
}

Type system (1)

• Object types and fields

  type Character {
    name: String!
    appearsIn: [Episode!]!
  }

  • Character and Episode are object types
  • Fields name and appearsIn can appear in any query on a Character
  • String is a built-in scalar type, just like Int, Float, Boolean and ID
  • [] means "array of"
  • ! means "non-nullable"

Type system (2)

• Arguments

  type Starship {
    id: ID!
    name: String!
    length(unit: LengthUnit = METER): Float
  }

  • all arguments are named
  • METER is the default value
• Enums

  enum Episode {
    NEWHOPE
    EMPIRE
    JEDI
  }

Type system (3)

• Query (and mutation) types

  type Query {
    hero(episode: Episode): Character
    droid(id: ID!): Droid
  }

  Example query enabled by this type:

  query {
    hero {
      name
    }
    droid(id: "2000") {
      name
    }
  }

Want more?

• graphql.org/learn/

10.3
GraphQL with Laravel

rebing/graphql-laravel

• Popular package: rebing/graphql-laravel
• Installation

  composer require rebing/graphql-laravel
  php artisan vendor:publish --provider="Rebing\GraphQL\GraphQLServiceProvider"


Approach

• Generate your classes with commands like:

  php artisan make:graphql:query ExampleQuery
  php artisan make:graphql:type ExampleType

• Register them in config/graphql.php

  'schemas' => [
      'default' => [
          'query' => [
              \App\GraphQL\Queries\ExampleQuery::class,
          ],
          'mutation' => [
              \App\GraphQL\Queries\ExampleMutation::class,
          ],
          'types' => [
              \App\GraphQL\Queries\ExampleType::class,
              \App\GraphQL\Queries\ExampleEnum::class,
          ],
      ],
      'user' => [
          'query' => [
              App\GraphQL\Queries\ProfileQuery::class
          ],
          'mutation' => [

          ],
          'types' => [

          ],
          'middleware' => ['auth'],
          // Which HTTP methods to support; must be given in UPPERCASE!
          'method' => ['GET', 'POST'],
          'execution_middleware' => [
              \Rebing\GraphQL\Support\ExecutionMiddleware\UnusedVariablesMiddleware::class,
          ],
      ],
  ],

Let's go

• Let's write our first type and query
• Don't forget to optimize the Eloquent query by select & eager loading
• Let's define and use enums
• Let's create a mutation
• Want some form of object as argument? Then you need an input object
• Did you know you can use Laravel's pagination?

Questions?

Sources
